Explosion Proof Telephone

ATEX Certified IP67 Waterproof Explosion Proof Telephone with Stainless Steel Armored Cable for Hazardous Areas

All Category

Industrial Weatherproof Telephone

Industrial Communication Devices

Public Telephones

Mr. Tony

tony@szyuantong.com

+86 19926404701

+86 19926404701

Contact Now

ATEX Certified IP67 Waterproof Explosion Proof Telephone with Stainless Steel Armored Cable for Hazardous Areas

MOQ:	1
Price:	459

Detail Information

Product Description

Detail Information

Certification:

CE, ISO, RoHS

Model NO.:

YTEX301-SIP/AL

Enclosure Material:

Aluminium Alloy

Enclosure Thickness:

10 Mm

Handset Material:

PC+ABS

Cable Tube Material:

Stainless Steel Armored

Cable Tube Load:

200kg

Keypad Material:

Industrial Grade Silicone

Buzzer Power:

Buzzer Sound Level:

80 DB At 1 Meter

Built-in Amplifier:

Power Supply:

DC12V Or Poe

Protection Grade:

Working Temperature:

-40℃ ~ +70℃

Product Dimensions:

334 * 254 * 123 (mm)

Net Weight:

Highlight:

ATEX Certified Explosion Proof Telephone

IP67 Waterproof Hazardous Area Telephone

Stainless Steel Armored Industrial Safety Telephone

Product Description

ATEX Certified Iecex Approved UL/cULus Listed Flameproof Enclosure Industrial Explosion Proof Telephone

IP67 Waterproof Outdoor Industrial Explosion Proof Telephone

Product Specifications

Product Name	Weatherproof Telephone
Model	YTEX301-SIP/AL
Enclosure	Aluminium alloy - waterproof and anti-corrosion coating, fade-resistant
Handset	PC+ABS - Robust and vandal proof
Telephone cable	Stainless steel armored retractable hose - 200kg tensile strength
Keypad	Industrial silicone
PCB	IP PCB or Analog PCB
Telephone speaker	3W 8Ω - 80 db at 1 meter
External speaker	25W - 110 db at 1 meter
Power Supply	DC12V or POE
Echo cancellation	Support G.168, Hands-free: max 96 millisecond

VOIP Features

Protocol: SIP2.0(RFC3261)
Codec: G.711A/u, G.7231 high/low, G.729, G.722, G.726
Network: 10/100 Mbps
Interface: RJ45

Analog Features

Communication Distance: 3KM
Low Frequency Group: 697-941 Hz
High Frequency Group: 1209-1477 Hz
Frequency Deviation: No more than ±1.5%
Level Difference Between Low and High Frequency Signals: 2 ± 1 dB
Total Distortion Due to Harmonic Intermodulation: At least 20 dB lower than the basic level
Wiring Method: Twisted pair telephone line

Packaging Details

Phone size	334 * 254 * 123 (mm)
Packaging materials	Corrugated box, pearl cotton lining
Net weight	About 8 KG
Gross Weight	10 KG

Company Profile

Shenzhen Yuantong Modern Technology Co., Ltd. is not only a leading manufacturer of industrial telephones and intercoms, but also an industrial communication solution company, located in Shenzhen, China, and established in 2017.

We focus on industrial communication solutions in oil & gas, chemical, mine, tunnel, transportation, healthcare and education industries.

Our target is to bring you an enjoyable life at work by saving cost, time, and energy!

Company Timeline

2021: Started international business and created multilingual website
2023: Attended exhibition Secutech Vietnam and expanded marketing in South Asia
2024: Attended exhibition Securika Moscow and expanded marketing in CIS countries
2025: New Factory in Zhongshan, attending Intersec SA to build marketing in Middle East

Sales Process

Presales	Check your exact demand, and recommend suitable product solution
Follow-up	Email, WhatsApp or WeChat, Video meeting
Quote	Sending quote based on confirmed product solution
Payment	T/T in advance or negotiation
Production	15-25 days or negotiation
Shipment	Express: 5-12 days, Air shipping: 7-15 days, Sea shipping: 25-55 days, Land carriage: 15-55 days

After Sales Service

Technical Support	Free technical support and free remote control by AnyDesk
Commissioning	Commissioning service at job site (cost covered by client)
Warranty	18 months
Partnership	Distribution or OEM/ODM

Our Advantages

Standard Quality	New factory in Zhongshan in 2025, material quality check, standard production lines, experienced workers, functional testing during production, finished product testing
Competitive Price	Scaled material procurement, own factory, higher non-defective product rate, 30% increased production efficiency
Fast Delivery	Standard production 15-25 days, shipment service management, document assistance for customs clearance
Innovation	Product iteration upgrade, software and hardware development, center equipment and terminal product integration
Exhibition	Show new products at international exhibitions annually, client visits after exhibitions
Factory Tour	Manage factory tours in Zhongshan, business meetings in Shenzhen, assist tours to other locations
Core Advantage	Culture respect, human rights, equality and mutual benefit

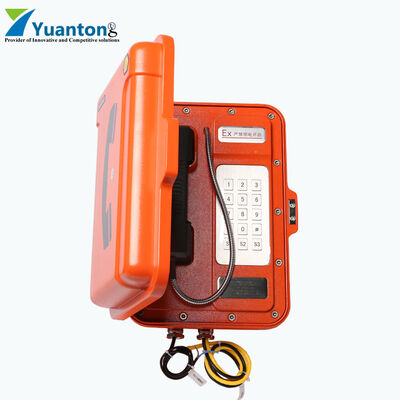

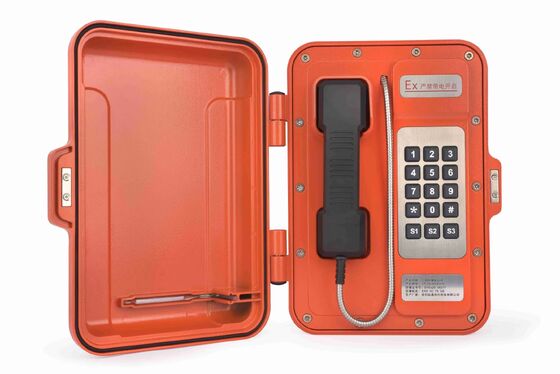

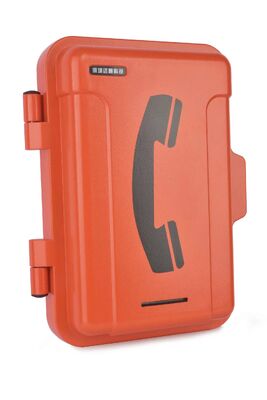

Product Images
