Explosion Proof Telephone

Stainless Steel Enclosure IP66 Protection 30W Built-in Amplifier Explosion Proof Industrial Telephone

All Category

Industrial Weatherproof Telephone

Industrial Communication Devices

Public Telephones

Mr. Tony

tony@szyuantong.com

+86 19926404701

+86 19926404701

Contact Now

Stainless Steel Enclosure IP66 Protection 30W Built-in Amplifier Explosion Proof Industrial Telephone

MOQ:	2
Price:	499

Detail Information

Product Description

Detail Information

Certification:

CE, ISO, RoHS

Model NO.:

YT-EX10

Enclosure Material:

Stainless Steel(Thickness 8mm)

Handset Material:

PC+ABS

Keypad Material:

Stainless Steel

Built-in Amplifier:

30W - Default

Protection Grade:

Rated Voltage:

DC 12V/AC 220V

Buzzer Sound Level:

Over 90 DB In One Meter

Cable Tube Load:

200kg

Operating Temperature:

-40℃ ~ +70℃

Power Consumption:

Standby:1.5W, Working Power: 3W (without External Speaker)

Communication Distance:

Phone Size:

260 *260 *153mm

Net Weight:

19 KG

Gross Weight:

22 KG

Highlight:

Stainless Steel Enclosure Explosion Proof Telephone

IP66 Protection Industrial Telephone

30W Built-in Amplifier Hazardous Area Telephone

Product Description

Explosion-Proof Stainless Steel Wall-Mounted Analog Industrial Telephone

This explosion-proof telephone is a high-performance stainless steel network communication device engineered for hazardous environments including mines, oil refineries, and chemical plants. Certified for use in areas with flammable gases (categories IIA, IIB, and IIC) and ignition temperature groups (T1-T6) in zones 1 and 2, as well as combustible dust mixtures in zones 21 and 22.

Key Features

Durable Construction: 304 stainless steel housing with IP66 protection rating
Vandal-Resistant Handset: Imported PC and ABS handset with retractable stainless steel hose and internal steel cable capable of withstanding over 200 KG tensile force
Digital Physical Keyboard: Supports full-duplex intercom with any designated terminal
Wall-Mounted Design: Suitable for both indoor and outdoor installation
Explosion-Proof Certification: Rated ExD ib IIC T6 Gb
Broadcast Capabilities: Receives broadcasts from control room and initiates broadcasts to all areas
Automatic Dialing: Quick alert functionality for emergency situations
Built-in Amplifier: Optional connection for explosion-proof speaker supporting background music and announcements
Power Output: DC12V/500mA output to directly drive alarm lights
ISO Certification: Complies with industry standards and regulations

Technical Specifications

Basic Features

Waterproof Rating	IP66
Explosion Proof Mark	ExD ib IIC T6 Gb
Ringing Sound Level	≥80 dB at 1 meter
External Speaker	≥110 dB at 1 meter (optional)
Noise Cancellation	Optional
Full-Duplex Communication	Supported
Enclosure Material	Stainless Steel
Color	Silver
Handset Material	ABS+PC, stainless steel hose tube
Keypad	Industrial grade silicone keyboard (default)
Stainless Steel Keypad	Optional
Fast Dial Buttons	S1, S2, S3
Power Supply	DC 12V/2A or Switch output: 33-60V
Power Consumption	Standby: 1.5W, Working: 3W (without external speaker)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +75°C
Mean Time Between Failures	More than 50,000 hours

Analog Features

Communication Distance	3km
Signal Level Standard Frequency	Low Frequency Group: 697-941 Hz High Frequency Group: 1209-1477 Hz Frequency Deviation: No more than ±1.5% Level Difference Between Low and High Frequency Signals: 2 ± 1 dB Total Distortion Due to Harmonic Intermodulation: At least 20 dB lower than the basic level
Wiring Method	Twisted pair telephone line

Package Details

Phone Dimensions	260 × 260 × 153mm
Packaging Materials	Corrugated box, pearl cotton lining
Net Weight	Approximately 19 kg
Gross Weight	22 kg

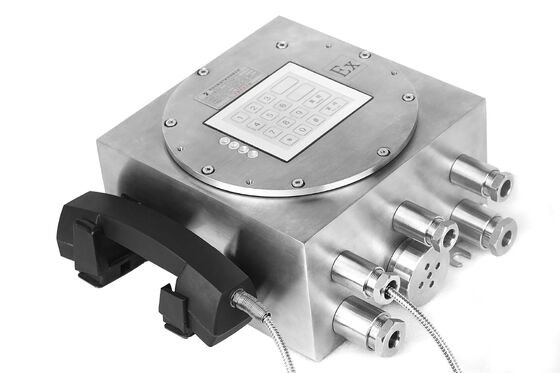

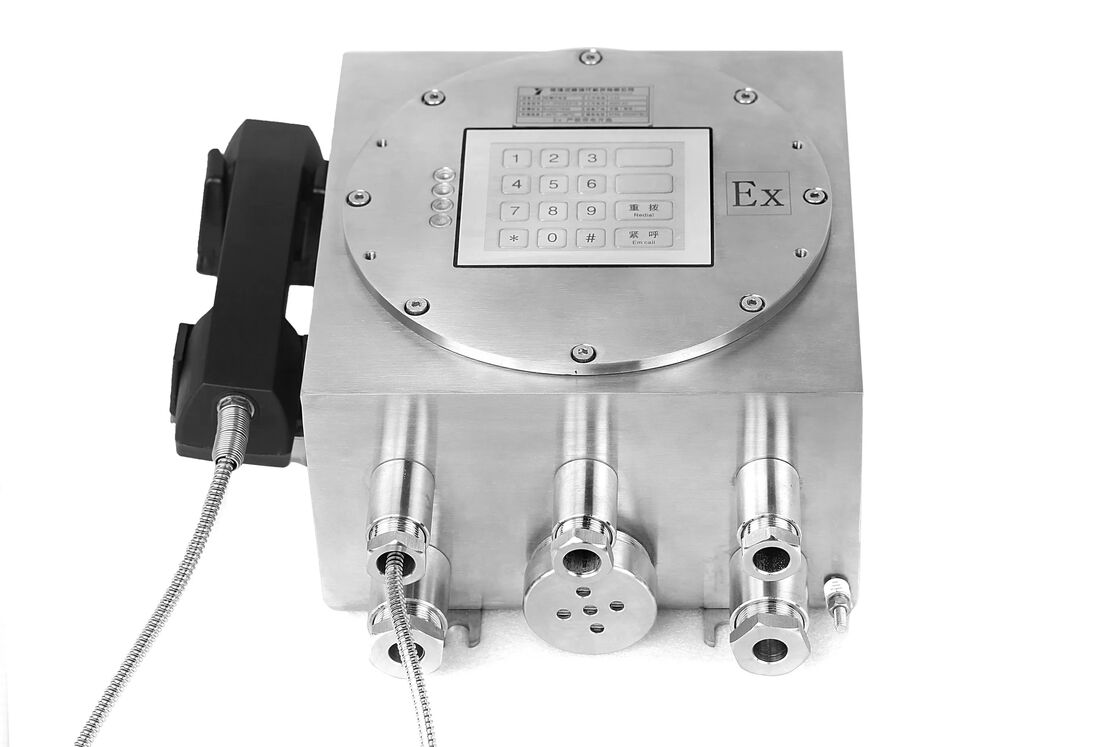

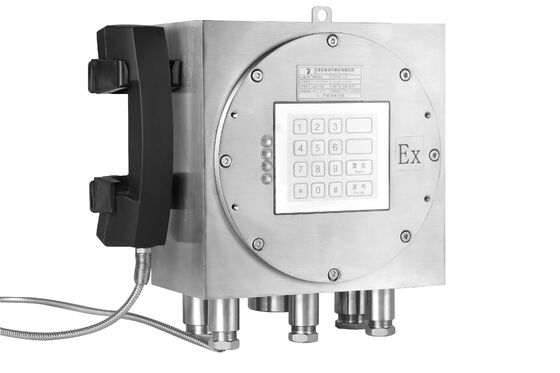

Product Images

Manufacturer Profile

Shenzhen Yuantong Modern Technology Co., Ltd. specializes in industrial telephones with over 8 years of manufacturing experience. Established in 2017 by Mr. Gong, who brings over 20 years of expertise in industrial communication technology.

The company designs advanced weatherproof and explosion-proof telephone systems featuring:
• Amplification Technology
• Noise Reduction Systems
• Long-distance Audio Capture

Product Series:
IP68 Weatherproof Telephones: YT-SG21, YT-SG30, YT-SG50
IIB/IIC Explosion Proof Telephones: YT-EX10, YT-EX30, YT-EX60

Certifications

Trusted Partner
