Explosion Proof Telephone with Aluminium Alloy Shell, IP68 Protection, and 30W Built-in Amplifier for Hazardous Areas

MOQ:	1
Price:	299

Detail Information

Product Description

Detail Information

Certification:

CE, ISO, RoHS

Model NO.:

YT-EX30

Shell Material:

Aluminium - Thickness 10 Mm

Protection Grade:

Handset Material:

PC+ABS

Built In Amplifier:

Temperature Range:

-40℃ ~ +70℃

Waterproof Rate:

Explosion Proof Mark:

ExD Ib IIB T6 Gb

Ringing Sound Level:

≥80 Db At 1 Meter

External Speaker:

≥110 Db At 1 Meter (optional)

Enclosure Material:

Aluminium Alloy Die-casting

Handset Material:

ABS+PC, Stainless Steel Hose Tube

Power Supply:

DC 12 V/2A Or Switch Output: 33-60V

Power Consumption:

Standby:1.5W, Working Power: 3W (without External Speaker)

Package Size:

350 X 282 X 137 Mm

Highlight:

Aluminium Alloy Shell Explosion Proof Telephone

IP68 Protection Hazardous Area Telephone

30W Built-in Amplifier Industrial Safety Telephone

Product Description

Explosion-Proof Telephone for India Oil Drilling Project

Designed for extreme hazardous environments, this explosion-proof telephone delivers reliable communication in oil & gas, chemical, mining, and industrial applications.

Key Features & Construction

Durable Construction

Corrosion-Resistant Aluminum Shell: Waterproof design with magnetic door cover to prevent dust and moisture ingress
Destruction-Resistant Handset: Made from imported PC and ABS composite materials with stainless steel retractable hose (tensile strength > 200KG)
Industrial-Grade Silicone Keyboard: Highly corrosion-resistant for enhanced durability

Protection Standards

Multi-layer Waterproof and Dustproof Structure: All components meet IP68 protection standards
High-Performance Waterproof Glue: High-viscosity, high-temperature resistant with waterproof lifespan exceeding 10 years
Explosion Proof Rating: ExD ib IIB T6 Gb

Performance Specifications

Extreme Temperature Range: Operates from -40°C to +70°C using industrial-grade components
Standard SIP Phone: Ensures compatibility with standard SIP protocols
External Amplifier: Increases ringing volume up to 110 dBA and supports broadcast announcements

Technical Parameters

Feature	Specification
Waterproof Rating	IP68
Explosion Proof Mark	ExD ib IIB T6 Gb
Ringing Sound Level	≥80 dB at 1 meter
External Speaker	≥110 dB at 1 meter (optional)
Noise Cancellation	Optional
Full-duplex Communication	Supported
Enclosure Material	Aluminum alloy die-casting
Color	Orange
Handset Material	ABS+PC, stainless steel hose tube
Keypad	Industrial grade silicone keyboard with 15 keys (default)
Stainless Steel Keypad	Optional
Fast Dial Buttons	S1, S2, S3
Power Supply	DC 12V/2A or Switch output: 33-60V
Power Consumption	Standby: 1.5W, Working: 3W (without external speaker)
Working Temperature	Operating: -40°C to +70°C, Storage: -40°C to +75°C
Mean Time Between Failures	More than 50,000 hours
Package Size	350 x 282 x 137 mm
Net Weight	Approximately 8 KG
Gross Weight	10 KG

Analogue Features

Parameter	Specification
Communication Distance	3km
Signal Level Standard Frequency	Low Frequency Group: 697-941 Hz High Frequency Group: 1209-1477 Hz
Frequency Deviation	No more than ±1.5%
Level Difference Between Low and High Frequency Signals	2 ± 1 dB
Total Distortion Due to Harmonic Intermodulation	At least 20 dB lower than the basic level
Wiring Method	Twisted pair telephone line

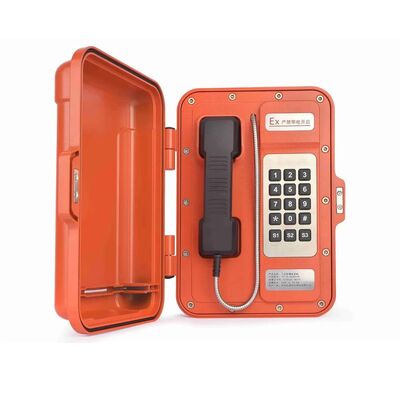

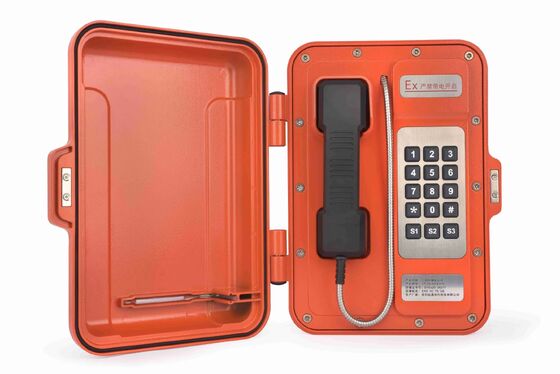

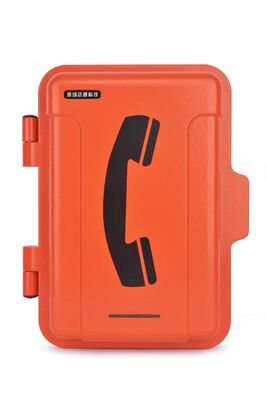

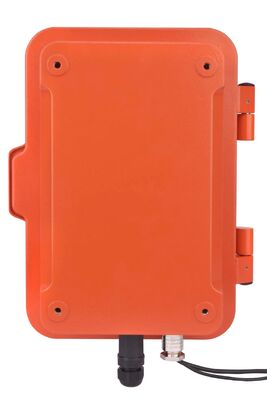

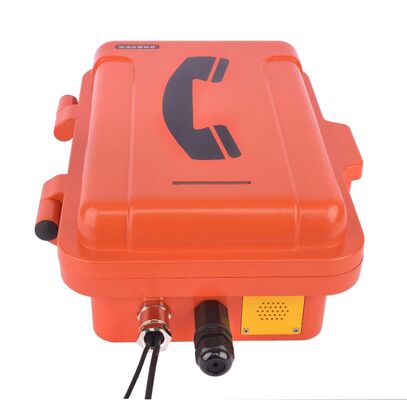

Product Images

Manufacturer Profile

Shenzhen Yuantong Modern Technology Co., Ltd. specializes in industrial telephones with over 8 years of manufacturing experience. Established in 2017 by industry expert Mr. Gong, who has over 20 years in industrial communications, the company designs advanced weatherproof and explosion-proof telephone systems featuring amplification, noise reduction, and long-distance audio capture technologies.

Product Series

IP68 Weatherproof Telephones: YT-SG21, YT-SG30, YT-SG50

IIB/IIC Explosion Proof Telephones: YT-EX10, YT-EX30, YT-EX60

Application Environments

Certifications

Tags:

explosion proof phone

ex proof telephone

stainless steel telephone
