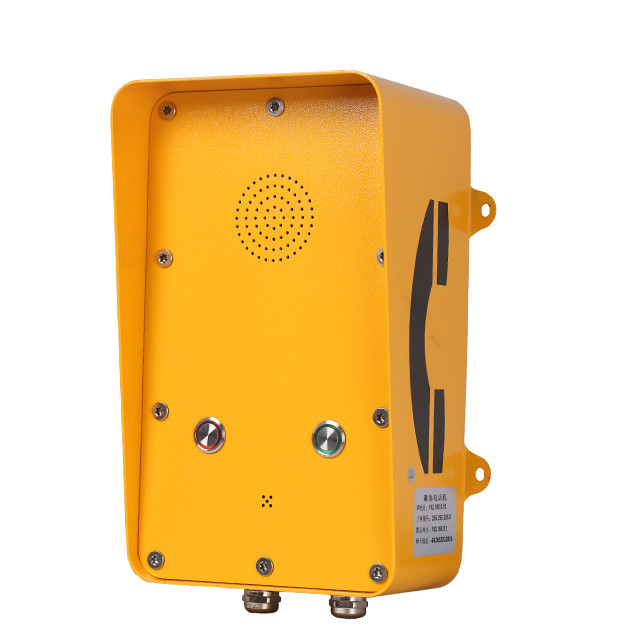

Impact Resistant Outdoor SOS Telephone Campus Emergency Call Box
The SOS emergency phone is suitable for installation in schools, squares, roads with dense traffic and high incidence of cases. When an emergency occurs or needs to be consulted for help, press the call button to immediately communicate with the monitoring center on-duty personnel, and the on-duty personnel can also learn about the scene through the front camera situation and broadcast a shout-out.
The SOS Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. Adopt 1080P high-definition video, low light compensation; Pole-type alarm column, alarm extension with built-in high-power speaker, with waterproof, moisture-proof, powder-proof, and anti-disassembly functions.
Main Features
Main Features of the emergency telepone
- Standard Analog phone, or SIP/VoIP phone
- Aluminum alloy die-casting body, cold rolled steel for pillar
- Weather proof protection to IP66
- Pillar mounting, Simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
Main Feature of the Pillar
- Painted for outdoor use
- Made of galvanized steel
- Sleek and harmonious design free of sharp edges
- Prepared for the containment of auxiliary circuits
- Weight: 30 KG
- Dimensions: 1500*436*306 mm
- Fixing: On floor
- Support to print Customized Logo on the phone door and pillar
Technical Parameters
| Connectable Versions | Analog, VoIP, GSM/3G |
| Material | Full metal shell, weatherproof |
| Color | Can be customized |
| Protection class | IP66 |
| One-touch calling | Support |
| Built-in camera | Realize video intercom |
| Warning light | Yes |
| Connection Protocol | Support SIP 2.0 |
| Installation method | Pillar Mounting |
Application
Widely used in schools, roadsides, streets, public squares, parks, parking lots, police stations, shopping malls, medical centers, industrial parks, transportation facilities and remote areas where local electricity is not available.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 28KG |
| Gross weight: | 30KG |
