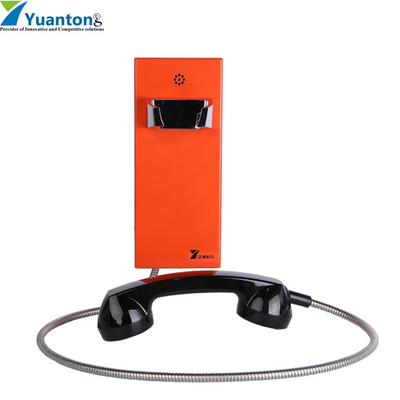

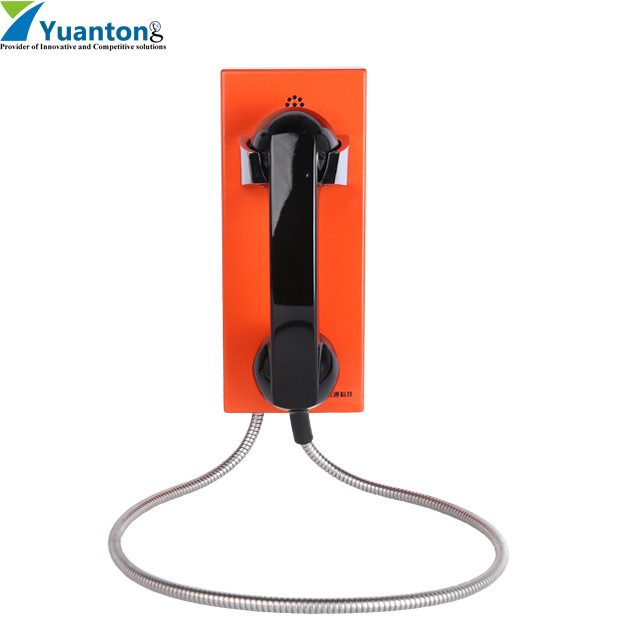

Speed Dial Emergency Hotline Waterproof Vandal Resistant Telephone Bank Phone

Speed Dial Emergency Hotline Phone Waterproof Vandal Resistant Telephone Bank Phone

The flush mount vandal resistant phone is housed in cold rolled steel boxes and manufactured to a high standard, increasing resistance to vandalism and ensuring that the primary function of communication is always maintained. Its designed to meet the needs of customers who have suffered losses due to vandalism. Suitable for parking lots, prisons, railway/subway platforms, hospitals, police stations, ATM machines, stadiums, outdoor buildings, etc.

Main Features:

Telephone Specification:

Casing Material- Stainless steel steel body

Ambient temperature- -30 degree to 60 degree

Atmospheric pressure- 86- 106 Kpa

Circumstance noise- ≤60dB(A)

Sound level of ringing- ≥70dB(A)

MTBF- 5-70000 hours

Standard frequency- low frequency group: 697. 770. 852. 941Hz,high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%

Call transmission index- (5KM) SLR ≤12,RLR≤-1, STMR≥10, output impedance is 600ohm

Call capability of phone- GB/T 15279-94

Defend grade- GB 4208-93 IP 66 / IP 67

Colors-  RED, YELLOW, GREY

Weight-  Up to 4.5 kg depending on option

Analogue Version

  Power Supply From the analogue telephone network

  Supply Voltage 24 VDC to 65 VDC

  Supply Current 20 mA DC to 100 mA DC

  Ringer Volume – 80dB(A) at a distance of 1 m– 110dB(A) at a distance of 1 m (for external speaker)

  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version

  Power Supply PoE or 12V DC

  Power Consumption -Idle:1.5W -Active:1.8W

  SIP Protocol SIP 2.0 (RFC3261)

  Support Codec G.711 A/U, G.722 8000/16000,

  Communication Type Full duplex

  Ringer Volume – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external speaker)

Ambient conditions

  Protection Type IP 66 as per EN60529

  Operating Temperature -30°C to +70°C

  Storage Temperature -40°C to +75°C

Technical Parameters

Package
