SOS Rugged Emergency Two Way Video Weatherproof Telephone

Two-way Video Industrial Weatherproof Telephone

Product Description

IP network video intercom terminal, embedded IPAudio digital network audio technology with independent intellectual property rights, the terminal is equipped with power input interface, digital camera, alarm input, alarm output, line output and other ports, suitable for indoor and outdoor environment communication.

Characteristics

Aluminum alloy die-casting shell, shell material thickness 9MM waterproof, dustproof, corrosion-proof, IP68, anti-collision IK07;

5 inch or 7 inch touch screen, resolution 1024*600, suitable for sunlight;

With a protective front cover, the phone remains as new for long-term use, and the magnetic door cover is easy to use.

There is a ringing indicator light on the top, sound and light prompts for incoming calls.

The running light on the front cover indicates the working condition of the equipment at a glance.

Equipped with a digital camera, which can realize two-way visual communication;

Built-in speaker and microphone microphone, hands-free call and receive broadcast;

Support swiping call, configurable trigger signal linkage unlocking;

With external line output interface, it can be connected with active speakers;

Standard SIP protocol, which can be connected to VOIP telephone system to realize visual communication;

Support ONVIF protocol, can perform all-weather recording and recording;

Can receive signals sent by other terminals for remote unlocking;

Noise alarm, when the detection environment volume continues to exceed the preset range, alarm the server;

Fault self-checking, when the microphone or loudspeaker fails, it will be automatically reported to the server for easy maintenance;

Support voice recognition, the terminal can automatically recognize specific voice commands to realize smart call, smart alarm, and smart broadcast functions.

It can be accessed where there is an Ethernet port, across network segments and across routes;

Interface Description

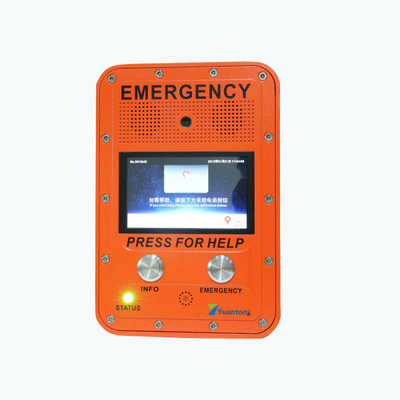

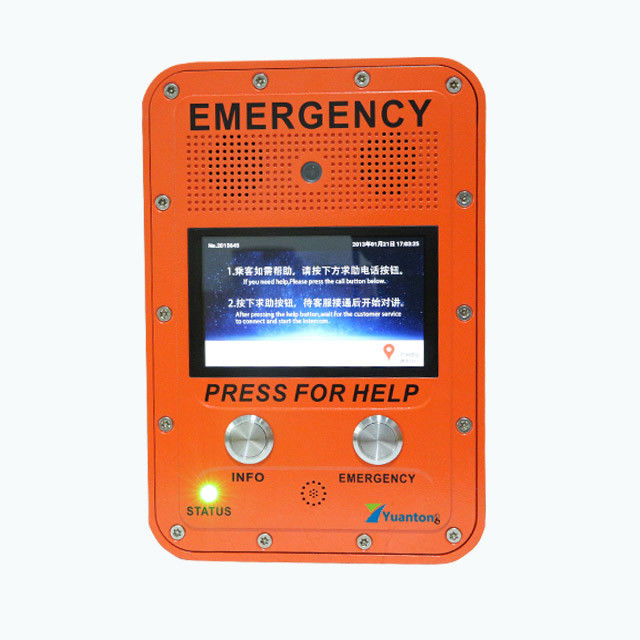

Front panel

1. Speaker: remote sound playback;

2. Camera

3. Touch screen: Human-computer interactive input channel, accepting instruction input.

4. Call button: Press the left button or the right button to call the terminal designated by the service software.

5.  Pickup microphone: Pick up the local environment and intercom sound.

6. Card swiping indication area: built-in swiping module, which supports swiping to open doors and swiping calls. This operation can be configured by visiting the terminal's web page.

7. Green: Line output interface, external active speaker or power amplifier.

8. Black: Short-circuit input interface (+: signal input: GND), used for external signal triggering.

9. Power input interface: DC12V/2A power input.

10. Short-circuit output interface (1: short-circuit output normally closed port 2: short-circuit output common port 3: short-circuit output normally open port), which can be connected to other devices for linkage control.

11. Power amplifier output interface: 2*8W/8Ω (1: SPK_1+ 2: SPK_1- 3: SPK_2+ 4: SPK_2-)

12. Network interface: insert a network cable to connect to the server.
