OEM Industrial Weatherproof Telephone Anti Vandal Waterproof Hotline

OEM Industrial Weatherproof Telephone Anti Vandal Waterproof Hotline

  • High Light

    Industrial Weatherproof Telephone

    ,

    Anti Vandal Industrial Weatherproof Telephone

    ,

    OEM Anti Vandal Telephone

  • Product Name
    Industrial Weatherproof Telephone
  • Type
    Hotline Telephone
  • Feature
    Anti Vandal Waterproof
  • Temperature
    40℃~75℃
  • Warranty
    2 Years
  • OEM
    Provided
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Yuantong
  • Certification
    CE, FCC, ISO9001, RoHS compliant
  • Model Number
    YT-DLSG30
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Phone size: 373 *282 *137(mm) Packing material: corrugated box, pearl cotton lining Gross weight: 9KG Net weight: about 8KG
  • Delivery Time
    7 -10 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5000pcs per month

OEM Industrial Weatherproof Telephone Anti Vandal Waterproof Hotline

OEM Industrial Weatherproof Telephone Anti Vandal Waterproof Hotline

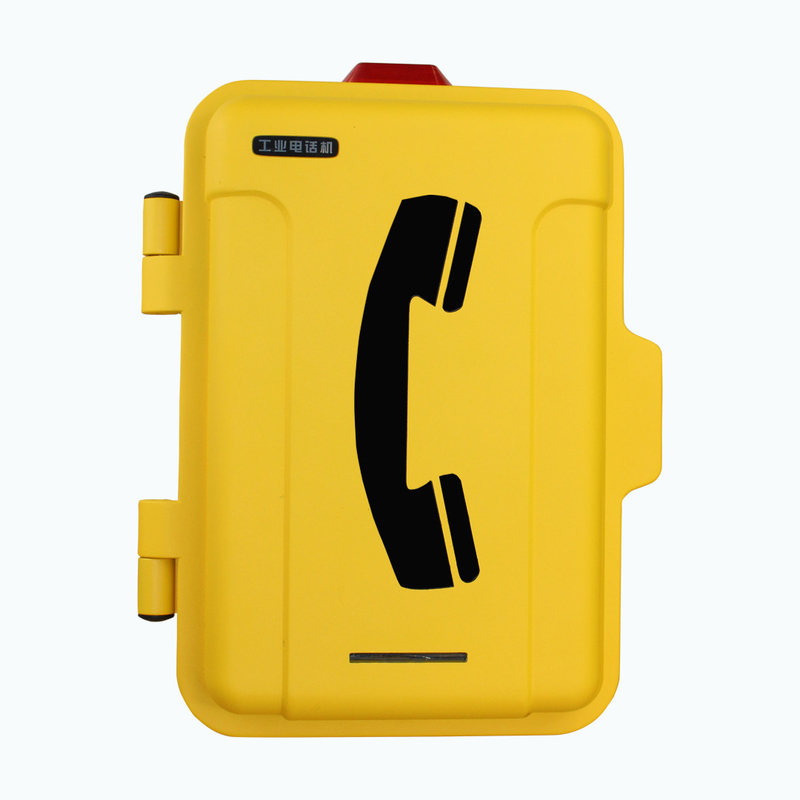

Anti Vandal Waterproof Industrial Weatherproof Hotline Telephone



The waterproof telephone for outdoor and industry. we produce large quantity of Tunnel telephone and export to many countries. waterproof telephone are widely used in railway trackside. Most of metro line under ground inside the tunnel need to install waterproof telephone. This Subway telephone installed at tunnel and subway need waterpoof IP68. The Subway telephone need to be rugged and rubost.



The waterproof telephone is made of a corrosion-resistant and anti-destructive cast aluminum waterproof casing, with a magnetic gravity door cover, which can completely prevent the entry of dust and moisture, thereby prolonging the service life of the product and improving the reliability and stability of the product. It is especially suitable for installation in areas with high dust, humidity, loud noise, and outdoors.



Feature

1. The handle is full-duplex with silicone dial pad, industrial-grade rubber buttons, strong corrosion resistance
2. Anti-vandal handset, using imported PC and ABS synthetic material, with stainless steel retractable hose. Internally designed with anti-destructive tensile steel rope, the tensile strength is 200KG or more.
3. Aluminum alloy die-casting shell, thickness 9 mm, strong and durable, good sealing; outdoor UV-proof powder coating, environmental protection, long-term outdoor exposure will not fade

4. All accessories such as the shell adopt multi-layer waterproof and dust-proof structure, waterproof, dust-proof and anti-corrosion, and the protection level is IP68

5. With a protective front cover, the phone is still as new after long-term use, and the magnetic door cover is easy to use

6. The top comes with a ringing indicator, sound and light prompts for incoming calls.
7. The running light of the front cover indicates that the working condition of the equipment is clear at a glance.

8. The color of the phone is optional, yellow is the standard color

9. External loudspeaker can increase the ringing volume to 110 points, and can broadcast and shout around the phone through the loudspeaker



Technical Parameters

Material Aluminum alloy
Protection class IP68
Power supply mode DC12V, external adapter
Connection Protocol Support SIP
Protective front cover yes
Ringing indicator yes
Ringing tone level ≥80 dBA within one meter
Dial mode full keyboard dial / off-hook automatic dial
Turn-on time less than 3S
Call method handle full duplex call
Communication interface RJ45 network port
Installation method Wall-mounted



Application

We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure..Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.

Package

Unit Size: 373 *282 *137(mm)
Carton Dimension: 400 *352 *150(mm)
Packaging materials: corrugated box, pearl cotton lining
Net Weight: 8KG
Gross weight: 9KG



Our Service

1. OEM&ODM service is available.

2. We will do our best to meet customer's requirements.

3. We also offer extended warranties and repair services on all our deliveries.

4. We aim to respond to all product support requests within 24 hours.
